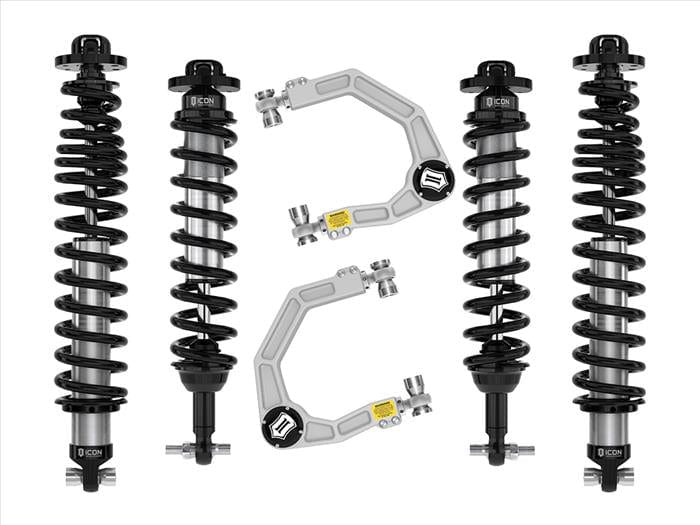

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3 to 4 of front lift and 2 to 3 Inch of rear lift over stock 4-door Broncos without the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90 Degree freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11-1/2 Inch of front suspension travel and 14 Inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 Inch and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35 Inch and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.

Features & Benefits

• 6061 Aircraft Grade Aluminum CNC Machined Components
• Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Diameter Shafts
• Improved Suspension Performance And Ride Quality Over Stock
• Vehicle Specific Tuned Internal Reservoir Front And Rear Shocks For Superior Damping And Vehicle Control
• PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
• ICON Engineered Coil Springs Featuring A Unique Triple Rate Rear Coil Design
• High Strength Alloy CNC Machined Lower Bar Pins

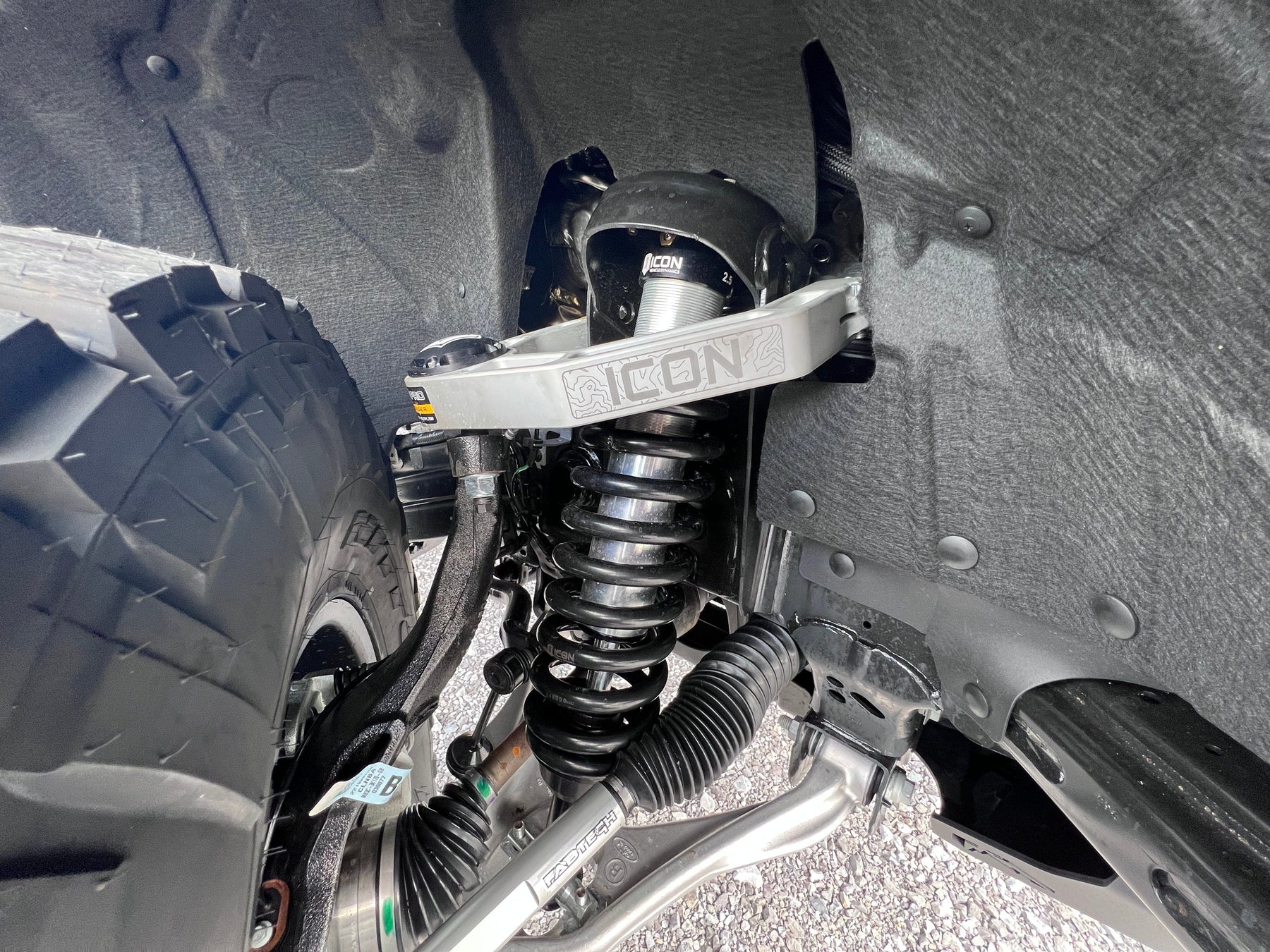

• Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster/Camber Adjustment For Optimum Drivability
• 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
• Limited Lifetime Warranty

• 21-Current Ford Bronco, 2 & 4 Door
• Non-Sasquatch models
• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
• Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
• Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4 Door non-Sasquatch Broncos
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

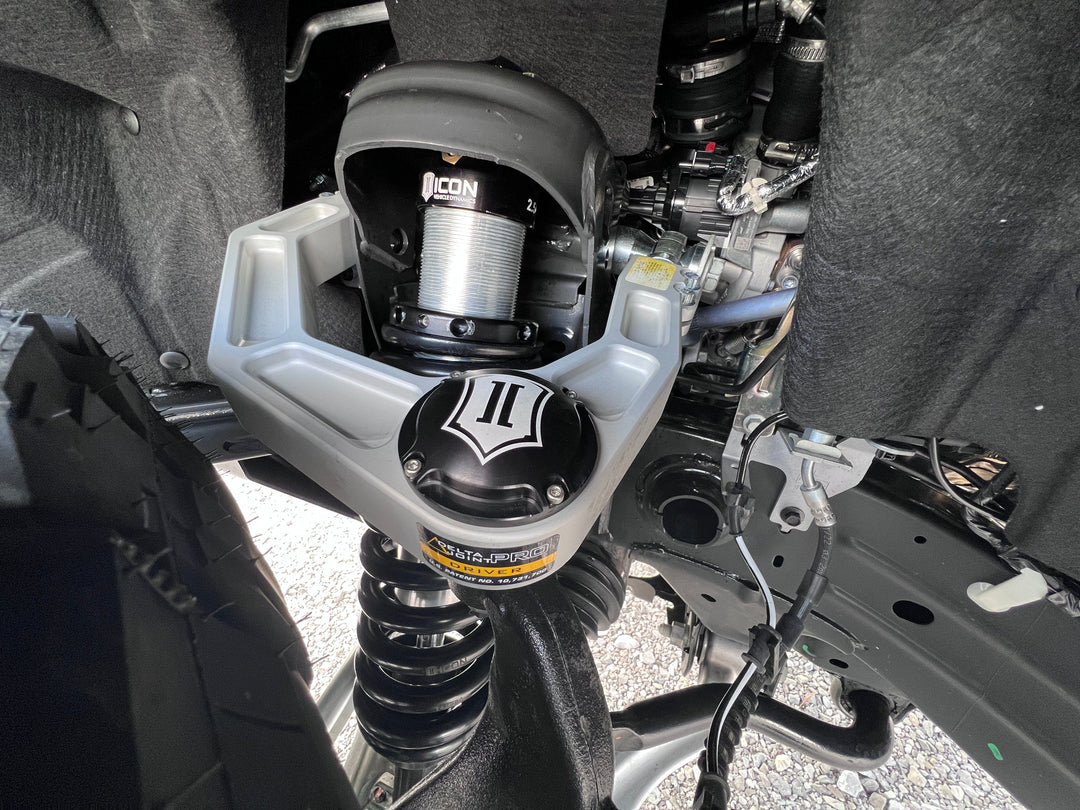

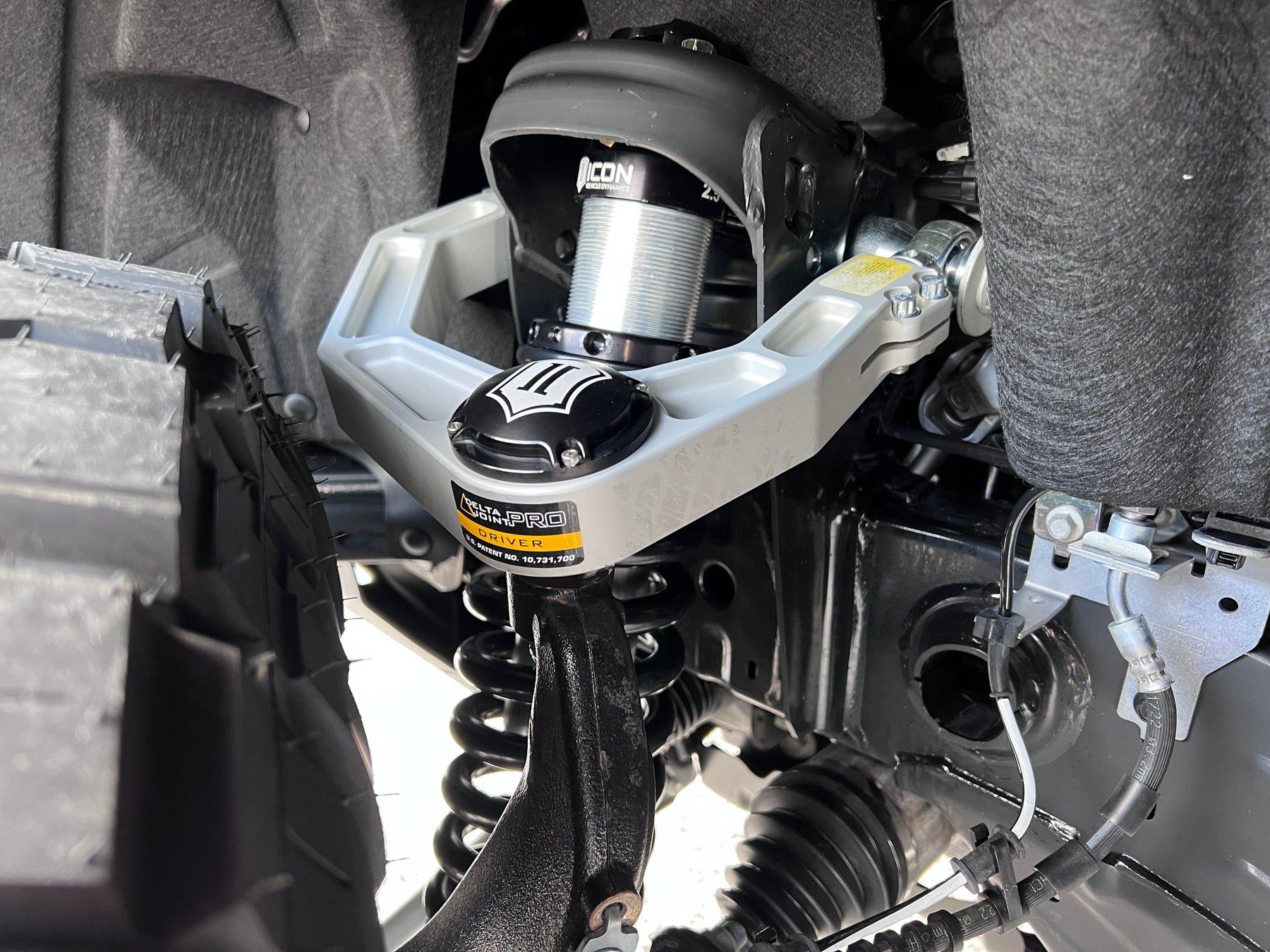

• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
