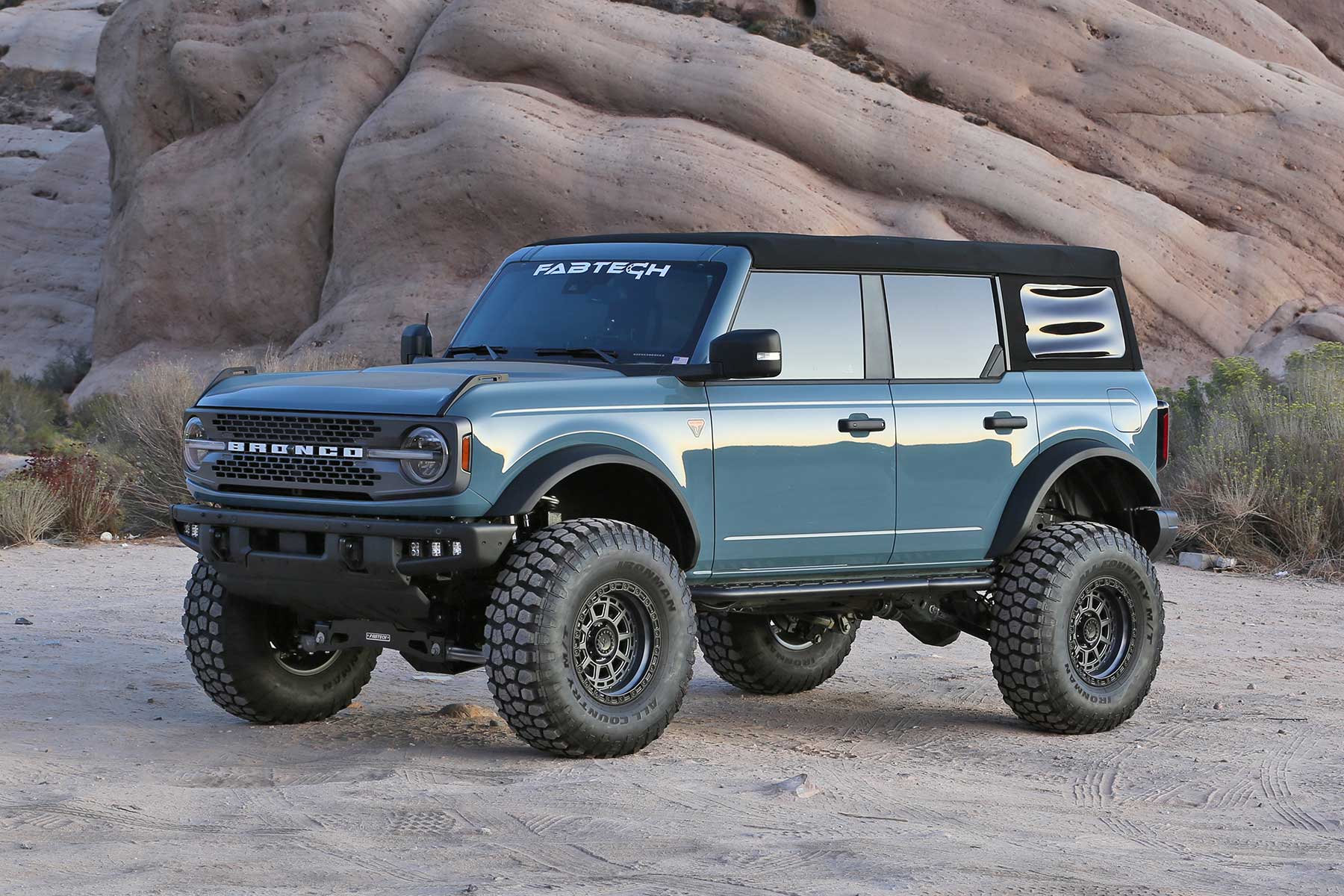

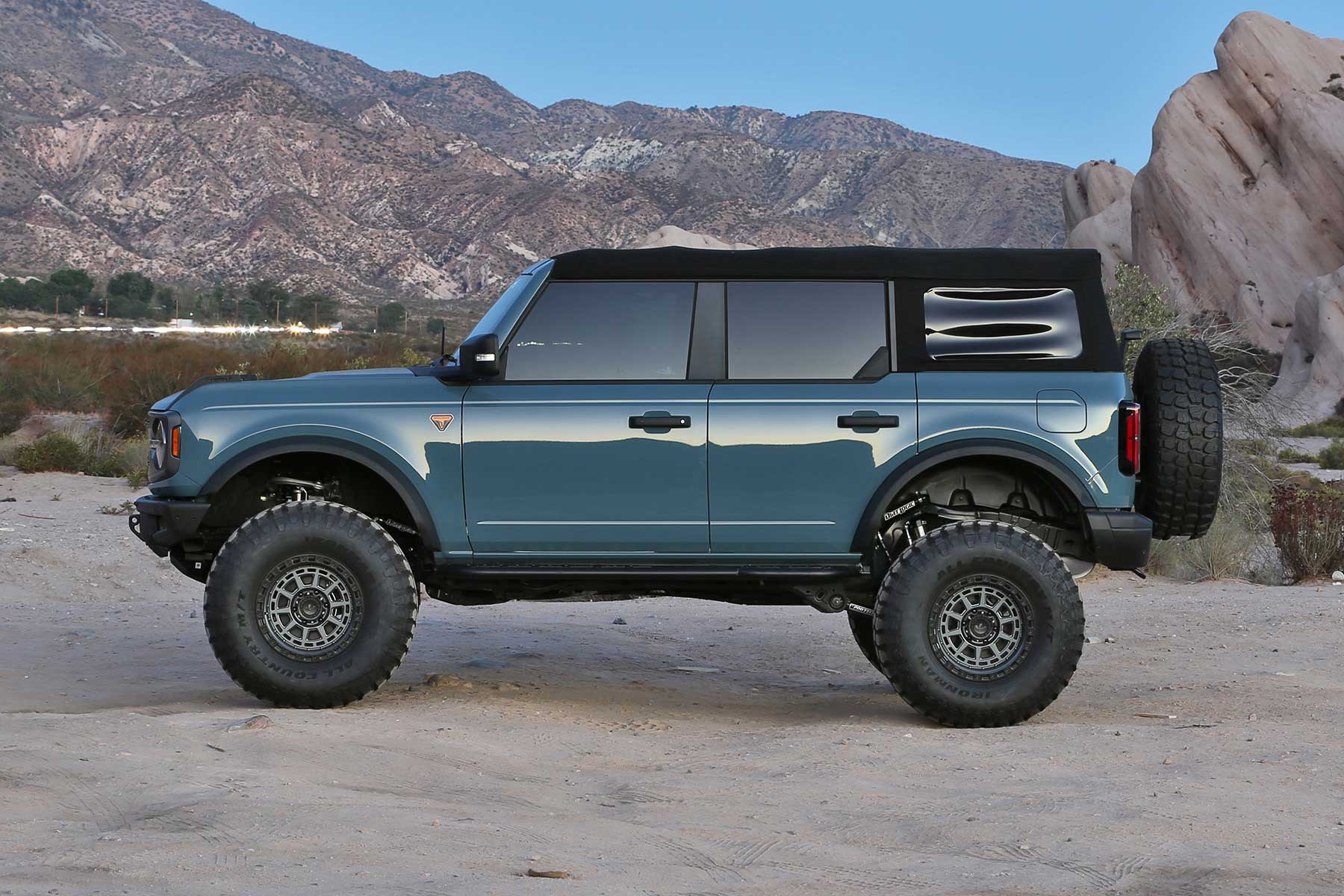

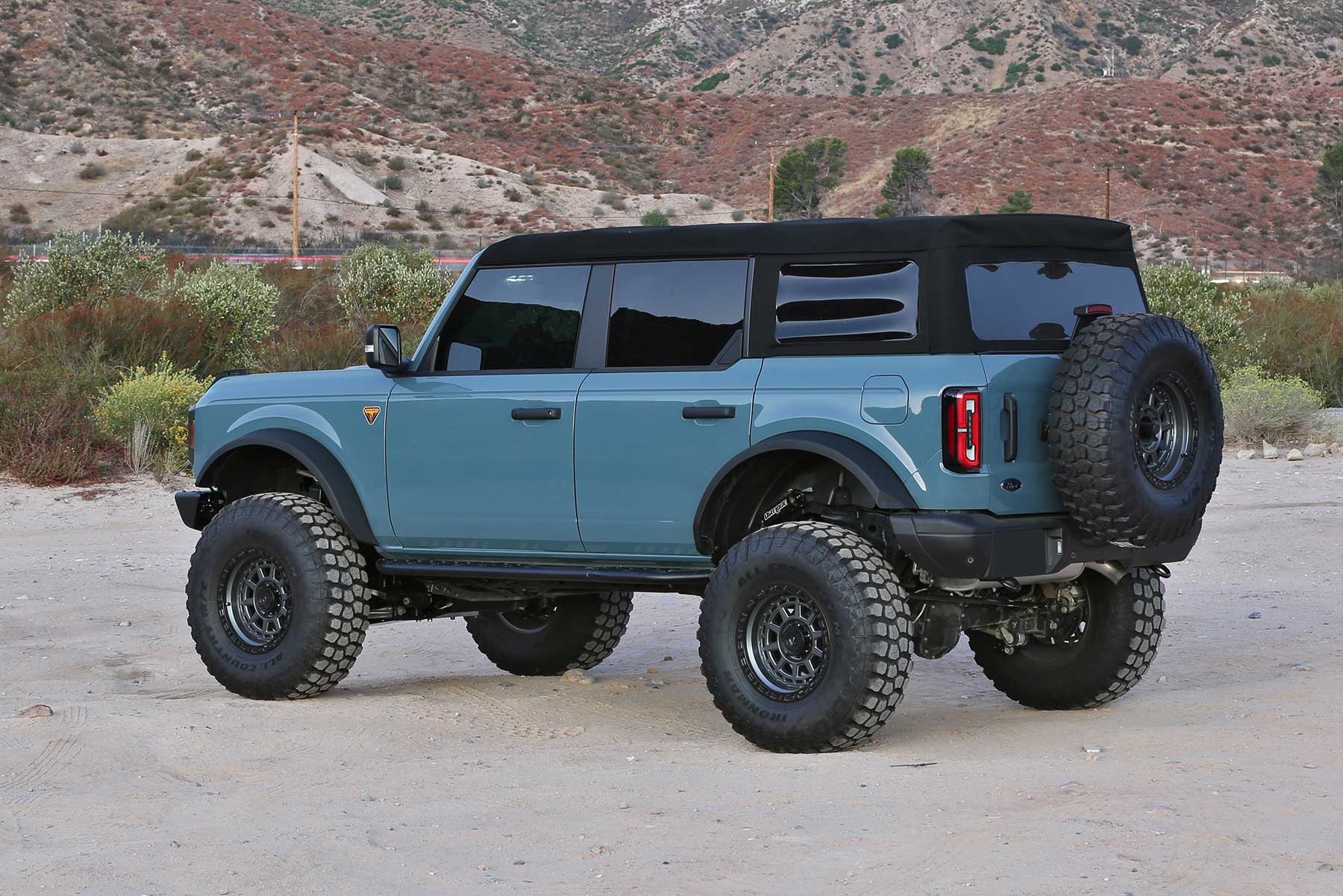

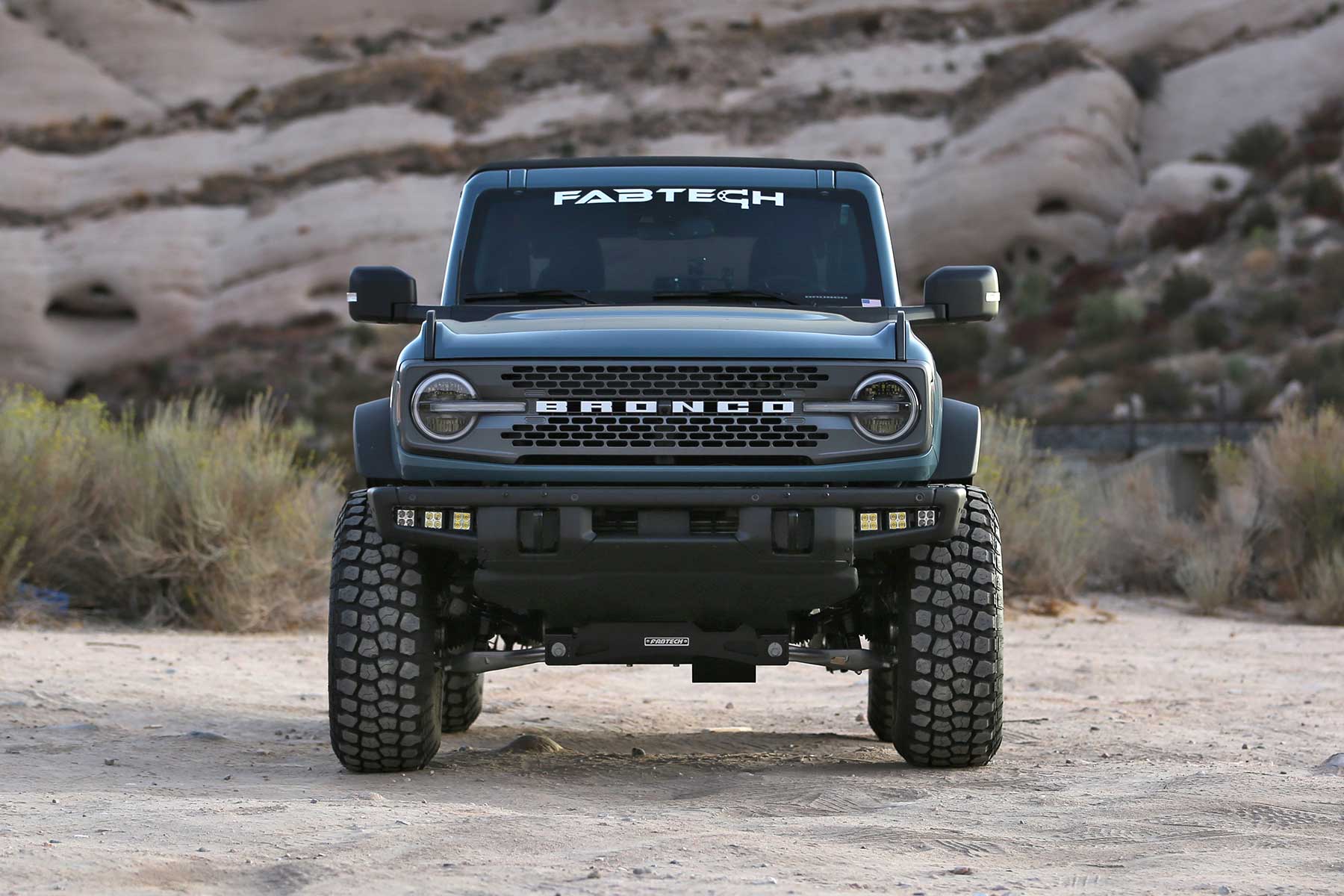

6″ Lift Kit – Front Dirt Logic 2.5 Resi Coilovers & Rear Dirt Logic Resi Coilovers – K2396DL - Fabtech 2021-2024 Ford Bronco 4door Non-Bilstein

$ 4,510.99
SKU: K2396DL
by Fabtech
Type: Lift Kit

2021-24 Ford Bronco 4WD [Non-Bilstein Factory Shocks]

Fabtech’s 6" Lift Kit for the Ford Bronco is built tough with 1/4" thick steel for unbeatable strength. Designed to keep your 38" or 40" tires snug under the fenders while maintaining factory alignment, to ensure stability on any terrain. Skid plates add protection for the front differential & sway bar actuator, which means this kit is ready for adventure.

The factory front and rear Coilover shocks are replaced by Dirt Logic 2.5 resi coilovers. The Dirt Logic 2.5 shocks feature a stainless steel body for maximum corrosion resistance. These shocks have been extensively ride tuned over thousands of miles in various on and offroad terrain to establish the finest overall ride quality. They will provide a superior ride compared to the factory coilover shocks. The front and rear Dirt Logic 2.5 coilovers deliver a balanced ride that driver and passengers will appreciate.

You can embark on every adventure with peace of mind, knowing that your suspension is FMVSS126 Certified, and protected by a 5-year, 60,000-mile powertrain warranty. Upgrade your Bronco and take on the next trail with confidence.


Features

Crossmembers

1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension.

Steering Knuckles

Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.

Dirt Logic 2.5 Coilovers

A 2.5″ diameter stainless steel body with 7/8″ NitroSteel® piston rod for maximum corrosion resistance and durability for aggressive driving conditions. The remote aluminum reservoir dissipates heat for consistent damping when driving over extreme terrain at high speed.

Skid Plate

A heavy-duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

Differential Mounts

Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.

Sway Bar Mounts

1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

Part Numbers

QTY PART # DESCRIPTION
1 FTS22357 Component Box 1
1 FTS22358 Component Box 2
1 FTS22361 Front Dirt Logic 2.5 Resi Coilovers
1 FTS22362 Rear Dirt Logic 2.5 Resi Coilovers
California Prop 65 Warning

  •

    FOOTNOTES

    123. Will not fit Raptor models.
    255. Does not fit vehicles equipped with HOSS 3.0 package.
    260. Will not fit vehicles equipped with M190 front differential and front axle disconnect assembly (FAD).





    Tires & Wheels

    • Use 38/12.50R17 tires w/ 17×9 wheels w/ 4 1/2″ BS w/ minor trimming
    • Use 38/12.50R18 tires w/ 18×9 wheels w/ 4 1/2″ BS w/ minor trimming
    • Use 38/12.50R20 tires w/ 20×9 wheels w/ 4 1/2″ BS w/ minor trimming
    • Use 40/12.50R17 tires w/ 17×9 wheels w/ 4 1/2″ BS w/ cutting
    • Use 40/12.50R18 tires w/ 18×9 wheels w/ 4 1/2″ BS w/ cutting
    • Use 40/12.50R20 tires w/ 20×9 wheels w/ 4 1/2″ BS w/ cutting





    DIRT LOGIC 2.5 RESI COILOVER

    From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.



    • 2.5″ OD Stainless Steel Body
    • 2.25″ OD Billet Aluminum Piston
    • 7/8″ NitroSteel® Black Piston Rod
    • Cold Wound Coil Springs
    • Adjustable Coilover Construction
    • 5/8″ Spherical Ball Mounting Ends
    • 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
