Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our
Mounting & Protection category for available options.
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability

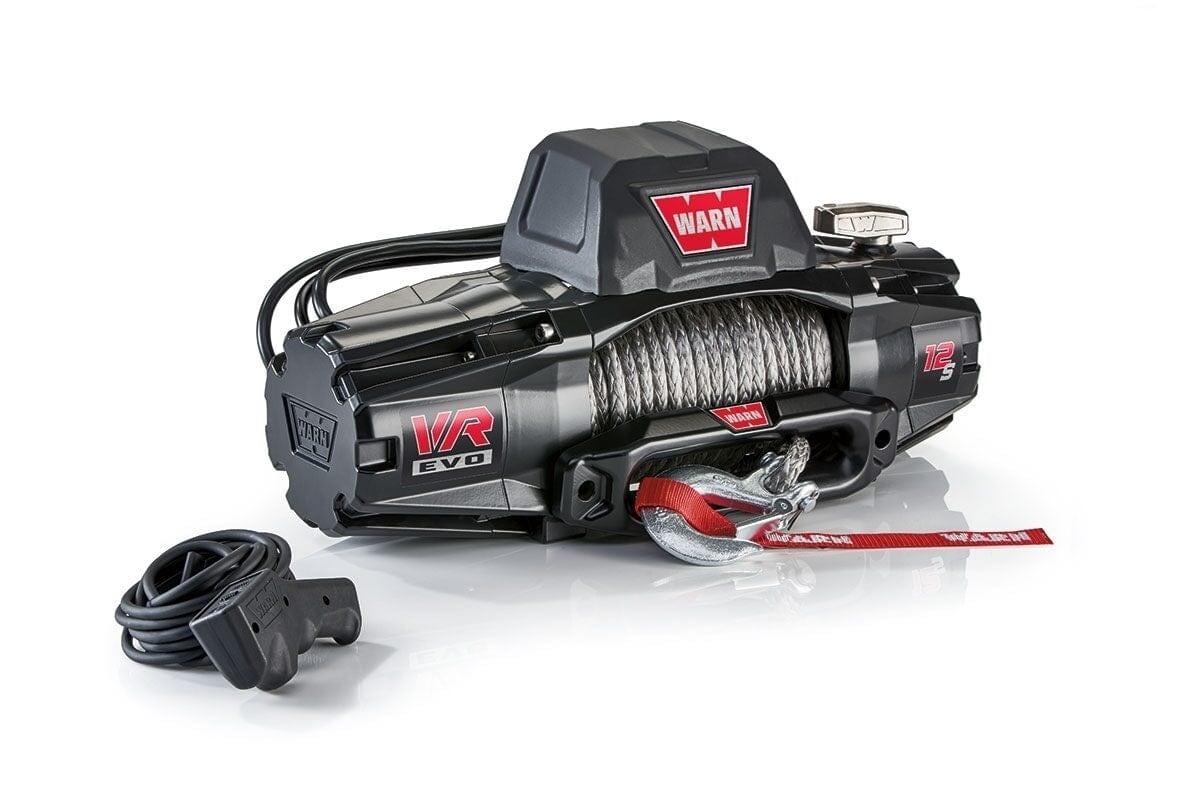

• Two-in-one remote with wired AND wireless options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
| TYPE |
Electric |
| RECOMMENDED USE |
Vehicle Recovery |
| MOUNTING LOCATION |
Vehicle Mounted |
| VOLTAGE |
12 Volt DC |
| ELECTRICAL CONTROL TYPE |
Albright Contactor |
| MOTOR TYPE |
Series Wound |
| DRIVE GEAR TYPE |
3-Stage Planetary |
| GEAR REDUCTION RATIO |
234:1 |
| FREE SPOOLING |
Yes |
| BRAKE TYPE |
Spring |
| LINE DIAMETER (IN) |
3/8 Inch |
| LINE MATERIAL |
Synthetic |
| LENGTH (FT) |
90 |
| FAIRLEAD TYPE |
Hawse |
| REMOTE TYPE |
2 in 1 plug in remote with wireless capability |
| MOUNTING HOLE QUANTITY |
4 |

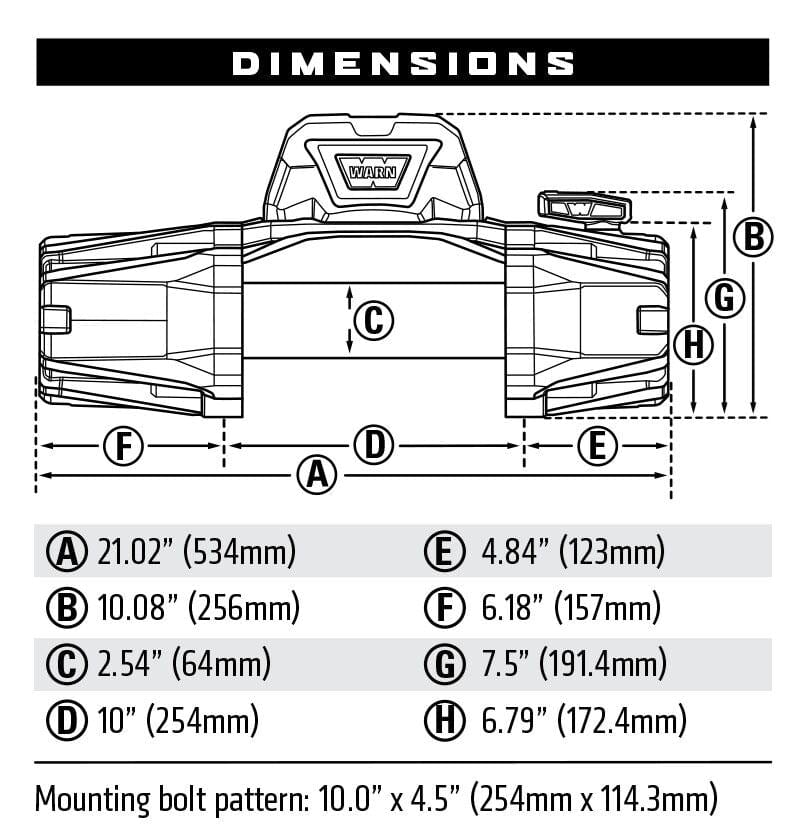

| MOUNTING PATTERN LENGTH (IN) |
10 Inch |
| MOUNTING PATTERN WIDTH (IN) |
4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE |
Yes |
| COLOR |
Black |
| DRUM MATERIAL |
Steel |
| MAX LINE PULL/ LINE SPEED |
12,000 pounds / 4.0 feet per minute |
| MAX AMP DRAW/ LINE PULL |
396 Amps / 12,000 pounds |
